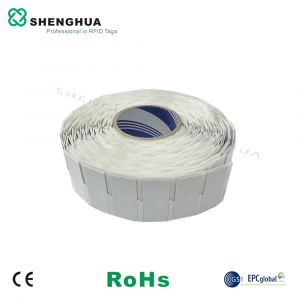

SH-I09_6025 Flexible UHF On-metal Tag US/ES
The flexible on-metal tag SH-I09_6025 is compatible with EPC, C1G2, and ISO 18000-6C standards. It is suitable for environments rich in metal and liquid and can be encapsulated as any type of printable label, barcode, or graphic label. Its paper-thin design allows it to easily adhere to curved objects such as cylinders, pipes, metal containers, and fixed assets.
| · Basic parameters | |
|---|---|
| Model SH-I09_6025 | |
| Type RFID UHF TAG | |
| Frequency 860-960MHZ | |
| Standards/Protocols EPC CLASS1 GEN2, ISO 18000-6C | |
| · Physical parameters | |
| Size 60*25*1.26mm | |
| Inlay Material AL | |
| Outer Material PP/PET | |
| · Performance Parameters | |
| Memory Size Up to 512bit | |
| Chip Impinj Monza R6 | |
| Operating Mode R/W | |
| Reading Distance | |
| · Environmental parameters | |
| Operating Temp -20℃~+50℃ | |
| Storage Temp -40℃~+100℃ | |
| · Specific applications | |
| Applications Product certification,Asset tracking,Logistics tracking,Anti-counterfeiting for valuable items,Medical asset management | |
| · Packaging and delivery | |
| Package 500pcs/roll | |
